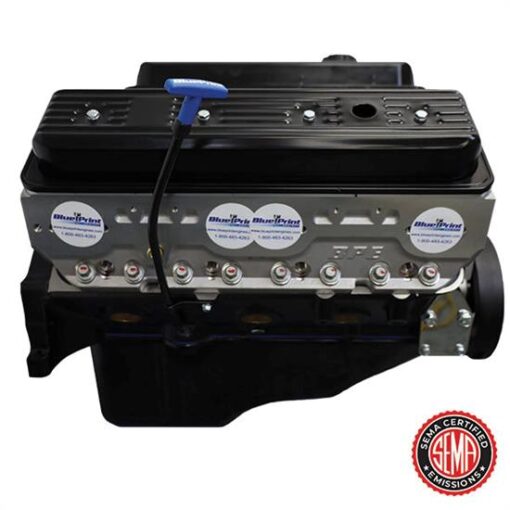

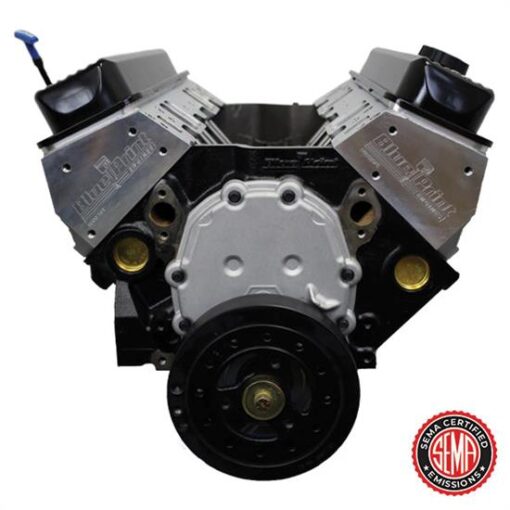

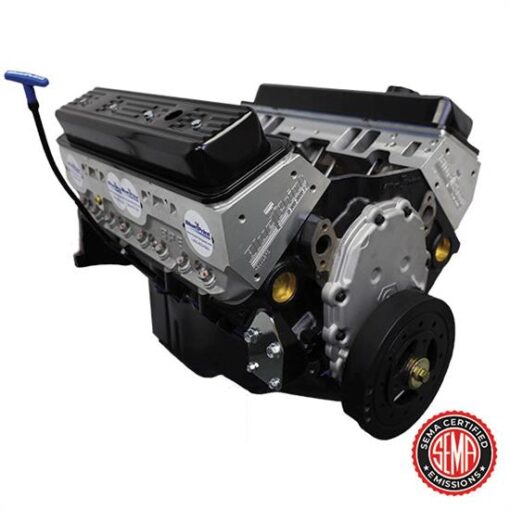

BluePrint BP38350CT1 383 Crate Engine, 96-00 GM Vortec Truck/SUV

Built with BluePrint Small Block Chevy Engine Part BPP38350RA. 49 State Legal, California Executive Order# D-824-1 BluePrint Engines 383CI Stroker Crate Engine for 1996-2000 GM Vortec Truck/SUV No ECU Tuning Required, Dyno Tested Longblock +47 Rear Wheel Horsepower Increase over Stock + 55 Rear Wheel ft/lbs Torque Increase over Stock Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons Compression Ratio: 10:1 BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:New BluePrint Steel crankshaft3.750" StrokeOEM type 5.700" connecting rods w/ 150,000 psi boltsHypereutectic pistonsExternally Balanced Front/ Externally Balanced Rear CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02" intake/1.60" exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.477 Intake .471 Exhaust202 Intake / 212 Exhaust duration@ .050 – 115 degree lobe separation IGNITION TIMING:Computer Controlled WARRANTY:30 month / 50,000 mile NOTES: This 383 stroker is designed for use in 1996 – 2000 Chevrolet Pick up or SUV that was originally equipped with a 350ci (5.7L) engine. No ECU tuning or recalibration is required.Advertised horsepower gains were achieved on chassis dyno, w/ factory EFI and ECU, in a Vortec equipped, otherwise stock, GM truck. We have taken our BluePrint Replacement Block and assembled the Small Block Chevy Kit to give you a 24% increase of 49 state legal horsepower, when installed in a GM pickup or SUV year 2000 or older model year that came with a California certified Gen 1 naturally aspirated 5.7 gasoline engine block. This engine may require modification to existing front accessory drive mounting brackets if retaining oem front accessory drive. This engine kit has a California Air Resources Board (C.A.R.B.) Executive Order (E.O.) number: D-824-1.

Highlights

• BluePrint Engines 383CI Stroker Crate Engine for 1996-2000 GM Vortec Truck/SUV
• No ECU Tuning Required, Dyno Tested Longblock
• +47 Rear Wheel Horsepower Increase over Stock
• + 55 Rear Wheel ft/lbs Torque Increase over Stock
• Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons

Specifications

• Crate Engine Type: Long Block
• Engine Displacement: 383 cu. in.
• Compression Ratio: 10.0:1
• Camshaft Type: Hydraulic Roller
• Cylinder Head Material: Aluminum
• Piston Material: Hypereutectic Aluminum
• Crankshaft Material: Cast Steel
• Combustion Chamber Volume: 64cc
• Camshaft Duration (.050 in): 202° intake / 212° exhaust
• Camshaft Lift (in): .477 intake / .471 exhaust
• Bore x Stroke (in): 4.000" x 3.750"
• Carburetor Included: No
• Intake Manifold Included: No
• Distributor Included: No
• Valve Covers Included: Yes
• Assembled: Yes
• Engine Balance: External
• Cylinder Heads Included: Yes
• Rear Main Seal Style: 1-piece
• Throttle Body Included: No
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Cylinder Head Style: Assembled
• Intake Valves Included: Yes
• Exhaust Valves Included: Yes
• Valve Spring Included: Yes
• Rocker Arm Studs Included: Yes
• Rocker Arms Included: Yes
• Head Gaskets Included: Yes
• Lifters Included: Yes
• MFG. Part #: BP38350CT1
• Sold in Quantity: Each
• Brand: BluePrint Engines
