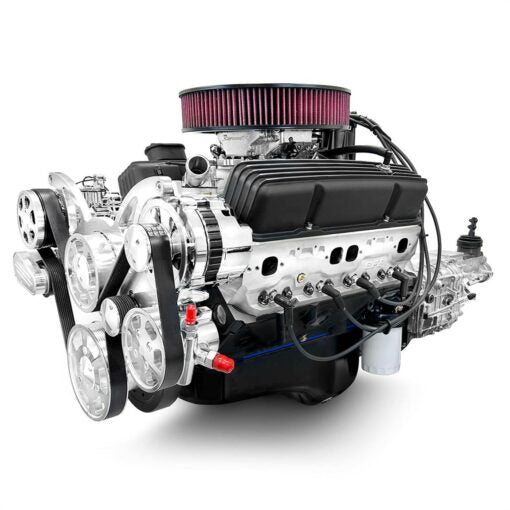

BluePrint Engines B400KTKX SBC 400/500HP with TKX, Carbureted

This BluePrint Builder Series 400 c.i. engine and TKX manual transmission package is a high-output carbureted small block Chevy combination built for serious street performance with classic V8 attitude and the control of a five-speed manual. Delivering 500 horsepower and 510 ft.-lbs. of torque, it combines forged internals, aluminum heads, a hydraulic roller cam, an 850 CFM Holley Double Pumper carburetor, and a polished front accessory drive with a complete TKX transmission package for a powerful, responsive setup made for aggressive acceleration and an engaging driving experience. BluePrint 400 delivers 500 horsepower and 510 ft.-lbs. of torque Polished front accessory drive Holley 850 CFM Double Pumper carburetor Forged crankshaft, forged pistons, aluminum heads, and hydraulic roller cam Complete TKX manual transmission package includes clutch, hydraulic throwout bearing, bellhousing, billet flywheel, starter, and overdrive gearing Block: BluePrint Engines High Strength Cast Iron Block Drilled and Tapped for Clutch Linkage Mech Fuel Pump Provision: Yes Passenger Side Dipstick 1-Piece Rear Main Seal 4-Bolt Main 4.125" Bore Rotating Assembly: BluePrint Forged Crankshaft 3.750" Stroke Forged I Beam 5.700" Connecting Rods w/ 150,000 PSI Bolts Forged Pistons Internally Balanced Front – Externally Balanced Rear Cylinder Heads: BluePrint Aluminum Cylinder Heads – HP8103 64cc Chamber 2.08" Intake / 1.60" Exhaust Valves 220cc Intake / 67cc Exhaust Runners Cam Specs: Hydraulic Roller .555 Intake / .576 Exhaust Lift 236 Intake / 242 Exhaust Duration @ .050-110 Degree Lobe Separation Ignition Timing: 10-16° Initial and Total Timing 32-34° at 3500 RPM Also Includes: Holley 850cfm Double Pumper Carburetor w/ Manual Choke Intake Manifold Dual Plane Satin Aluminum – BPP350VINT Pro Series Ready Run Distributor – BPP3503BK Thermostat Housing – BPP10108470 Mechanical Fuel Pump – BPP61073 Thermostat – BPP180TS Spark Plugs – BPP7938 Plug Wire Separators Spark Plug Wires Valve Covers Timing Cover Oil Filter Oil Pan Polished Front Accessory Drive – BPP350FDACPS4 Reverse Rotation Short Water Pump Type II Power Steering Pump Remote Power Steering Pump Reservoir 140amp 1-wire Alternator 7B10 Peanut Style Air Conditioning Compressor Assembled with Complete TKX Transmission Package: Mcleod Super Street Pro Single Disk Clutch Hydraulic Throw Out Bearing Bell Housing Billet Flywheel Starter First Gear Ratio: 2.87:1 Second Gear Ratio: 1.89:1 Third Gear Ratio: 1.28:1 Fourth Gear Ratio: 1.00:1 Fifth Gear Ratio: 0.81:1

Highlights

• BluePrint 400 delivers 500 horsepower and 510 ft.-lbs. of torque
• Polished front accessory drive
• Holley 850 CFM Double Pumper carburetor
• Forged crankshaft, forged pistons, aluminum heads, and hydraulic roller cam
• Complete TKX manual transmission package includes clutch, hydraulic throwout bearing, bellhousing, billet flywheel, starter, and overdrive gearing

Specifications

• Engine Displacement: 400 cu. in.
• Horsepower: 500 horsepower
• Compression Ratio: 10.3:1
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Piston Material: Forged Aluminum
• Crankshaft Material: Forged Steel
• Combustion Chamber Volume: 64cc
• Camshaft Duration (.050 in): 236° intake / 242° exhaust
• Camshaft Lift (in): .555 intake / .576 exhaust
• Carburetor Included: Yes
• Intake Manifold Included: Yes
• Distributor Included: Yes
• Connecting Rod Material: Forged Steel
• Cylinder Heads Included: Yes
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Harmonic Balancer Included: Yes
• Flywheel Included: Yes
• Air Cleaner Included: Yes
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• MFG. Part #: B400KTKX
• Sold in Quantity: Kit
• Brand: BluePrint Engines
