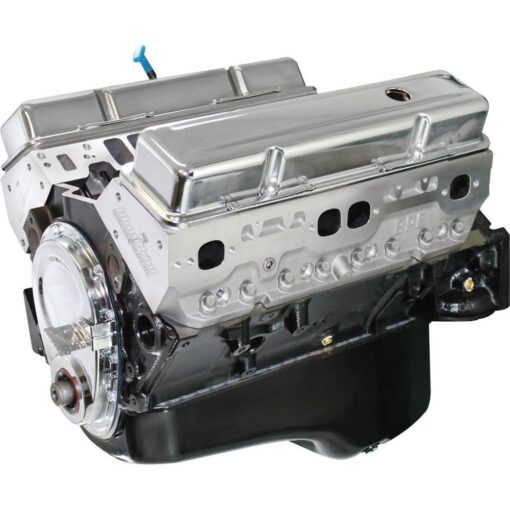

BluePrint BP38318CT1 S/B Chevy 383 Longblock Crate Engine

BluePrint Engines builds high-performance crate engine to replace your tired old factory engine! These crate engines are high-performance drop-in engines offering substantially more horsepower than the factory original. Crate engines or crate motors from BluePrint Engines offer a custom builder, hot rodder, or kit car builder an engine that is ready to drop in the vehicle. BluePrint crate engines come in several levels of dress – from a shortblock all the way to complete with all the components that will be needed to start and run the engine very quickly. No extensive cleaning or installation of parts is required. In addition, BluePrint crate engines are dyno-tested and are shipped with a documentation of their high-performance power curve. DESCRIPTION HP & Torque: 436 HP / 443 FT LBS Compression Ratio: 10.0:1 Aluminum Heads Hydraulic Roller Cam Cast Steel Crank Hypereutectic Pistons BLOCK: NEW BluePrint Cast Iron Block Manufactured and Machined in the USA! 4-Bolt Main 4.000" 1-Piece Rear Main Seal Mech fuel pump provision: Yes Passenger Side Dipstick Drilled and tapped for clutch linkage ROTATING ASSEMBLY: New BluePrint Cast steel crankshaft 3.750" Stroke OEM type 5.700" connecting rods w/ 150,000 psi bolts Hypereutectic pistons External Front/ External Rear CYLINDER HEADS: BluePrint Aluminum Cylinder Heads – H8002K 64cc chamber 2.02" intake/1.60" exhaust valves 195cc intake/75cc exhaust runners BluePrint full roller rockers (STEEL)* 7/16 rocker stud size 1.6 rocker arm ratio CAM SPECS: Cam Type: Roller .544 Intake .555 Exhaust 230 Intake / 236 Exhaust duration @ .050, 110 ° lobe separation angle IGNITION TIMING: Initial timing – 10-16 ° and Total timing 32-34° ALSO INCLUDES: Oil Pan Dipstick Valve Covers Timing Cover WARRANTY: 30 month / 50,000 mile

Highlights

• HP and torque : 436 HP / 443 FT LBS
• Compression Ratio: 10.0:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Steel Crank, Hypereutectic Pistons

Specifications

• Crate Engine Type: Long Block
• Engine Displacement: 383 cu. in.
• Horsepower: 436 horsepower
• Compression Ratio: 10.0:1
• Torque: 443 ft./lbs.
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Piston Material: Hypereutectic Aluminum
• Crankshaft Material: Cast Steel
• Combustion Chamber Volume: 64cc
• Camshaft Duration (.050 in): 230° intake / 236° exhaust
• Camshaft Lift (in): .544 intake / .555 exhaust
• Bore x Stroke (in): 4.000" x 3.750"
• Carburetor Included: No
• Intake Manifold Included: Yes
• Distributor Included: Yes
• Connecting Rod Material: OEM Style
• Warranty: 30 month / 50,000 miles
• Valve Covers Included: Yes
• Assembled: Yes
• Engine Balance: Internal/External
• Cylinder Heads Included: Yes
• Rear Main Seal Style: 1-piece
• Throttle Body Included: Yes
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: Yes
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: Yes
• Wiring Harness Included: Yes
• Cylinder Head Style: Assembled
• Intake Runner Volume: 195cc
• Intake Valve Diameter: 2.02"
• Exhaust Valve Diameter: 1.6"
• Block: 4 bolt main
• MFG. Part #: BP38318CT1
• GTIN Code: 816671020502
• Notes: Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
• Sold in Quantity: Each
• Spark Plug Style: Straight
• Recommended Fuel: 91 Octane
• Brand: BluePrint Engines
