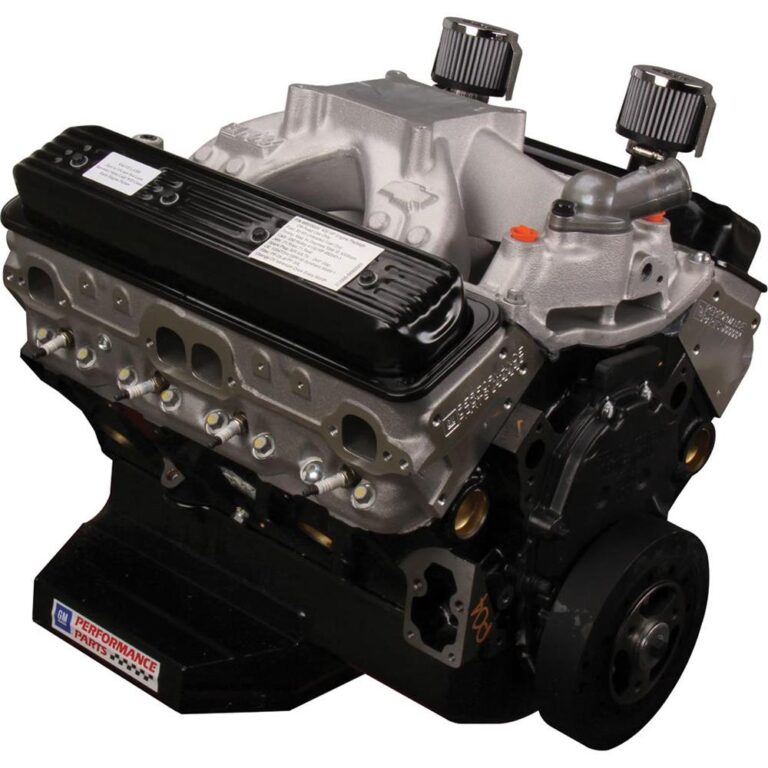

CT400 IMCA-Sealed 604 Crate Engine, Dyno Tested, Race Ready

Run up front with the 400-horsepower CT400 crate engine (often referred to as the "604 crate") featuring Fast Burn heads from GM Performance Parts. Now, Speedway Motors Racing Engines is offering this 604 crate engine as a dyno-verified package that is ready to race! These IMCA-sealed 604 crate racing engines are based on the popular Fast Burn 385 street crate engine, but include a racing-only 8-quart circle track oil pan with dual kick-out design, along with a valve cover breather kit and special "kool nut" rocker arm design. The assembly also includes an open-plenum high-rise intake manifold and 1.5:1-ratio aluminum roller rockers. The 604 crate engine includes a bulletproof bottom end, anchored by a forged steel crankshaft and hypereutectic pistons. The 23-degree, Fast Burn aluminum heads enable tremendous power in the small-block V-8 because of a unique chamber design that quickly and completely burns all of the air/fuel mixture – giving you maximum power. With the CT400 racing engine under the hood of your Modified or Late Model, you'll put a "fast burn" on the competition. IMCA sealed and approved for use in IMCA Dyno-verified horsepower and torque and will include a dyno sheet of your engine 400 HP @ 5500 RPM 400 ft. lbs. of torque @ 4500 RPM Piston rings are broken-in using a proprietary dyno program to ensure proper ring seal which increases horsepower Lifter preload and timing are set prior to break in procedure for race ready performance right out of the crate Piston rings are broken-in using a proprietary dyno program Lash and timing are individually tuned Engine is ready to race, right out of the crate IMCA-sealed for equal competition Popular in Modified and Late Model classes* 400 HP 5500 RPM 400 ft. lbs. of torque 4500 RPM 4.00" x 3.48" bore x stroke 9.6:1 compression ratio 92 octane recommended fuel 4-bolt main caps Cam lift: .474" intake / .510" exhaust Cam duration .050": 208° intake / 221° exhaust 112° lobe separation 1.5:1 ratio aluminum roller rocker arms 2.00" Intake / 1.55" Exhaust valves Includes: Fully assembled long block Black steel valve covers w/ breathers Oil pump, pick-up, 8 quart oil pan Eliminator Vortec intake manifold Spark plugs 8" harmonic balancer Front timing cover Dyno sheet of your engine IMCA-issued bolts and is approved for use in IMCA *Check track/series rules for approved applications.

Highlights

• IMCA sealed and approved for use in IMCA
• Dyno-verified horsepower and torque and will include a dyno sheet of your engine
• 400 HP @ 5500 RPM 400 ft. lbs. of torque @ 4500 RPM
• Piston rings are broken-in using a proprietary dyno program to ensure proper ring seal which increases horsepower
• Lifter preload and timing are set prior to break in procedure for race ready performance right out of the crate

Specifications

• Crate Engine Type: Deluxe Crate Engine
• Engine Displacement: 350 cu. in.
• Horsepower: 400 horsepower
• Compression Ratio: 9.72:1
• Torque: 400 ft./lbs.
• Maximum RPM: 5,800
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Piston Material: Hypereutectic Aluminum
• Crankshaft Material: Forged 4340 Steel
• Combustion Chamber Volume: 62cc
• Camshaft Duration (.050 in): 208° intake / 221° exhaust
• Camshaft Lift (in): .474 intake / .510 exhaust
• Bore x Stroke (in): 4.000" x 3.480"
• Carburetor Included: No
• Intake Manifold Included: Yes
• Distributor Included: No
• Connecting Rod Material: Powdered Metal
• Warranty: None
• Valve Covers Included: Yes
• Assembled: Yes
• Engine Balance: External
• Cylinder Heads Included: Yes
• Rear Main Seal Style: 1-piece
• Throttle Body Included: No
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: Yes
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Cylinder Head Style: Assembled
• Intake Runner Volume: 210cc
• Intake Valves Included: Yes
• Intake Valve Diameter: 2"
• Exhaust Valves Included: Yes
• Exhaust Valve Diameter: 1.55"
• Camshaft Included: Yes
• Cylinder Heads: Fast Burn with LS-style Beehive Springs
• Rocker Arms: Aluminum roller
• Rocker Arm Ratio: 1.5:1
• Block: 4 bolt main
• MFG. Part #: 19419604
• Notes: Broke-in, dyno-verified HP/TQ, and IMCA-sealed for competition
• Sold in Quantity: Each
• Spark Plug Style: Angle
• Brand: Speedway Motors Racing Engines
